底盖

使用C系列底盖可以用来防护螺纹或管子,棒等,为您提供低成本的选择。

产品特色

低密度聚乙烯材质(LDPE),成本低
可用于有螺纹/无螺纹零件
标准色是红色

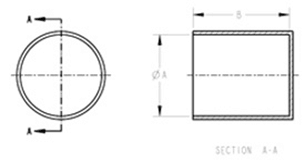

Part NumberAS Plug Outside DiameterAs Cap Inside DiameterDepth    “E"Flange“F”Commom Applications
AS PlugAS Cap
"A""B""C""D"
inchesmminchesmminchesmminchesmminchesmminchesmm
T-50.1162.950.1824.620.0531.350.123.050.389.650.317.87
T-100.1453.680.2055.210.0792.010.153.810.389.650.4110.41
T-150.1734.390.246.10.1112.820.1774.50.389.650.389.65
T-170.1874.750.2516.380.1243.150.1964.980.3458.760.3729.45
T-180.2095.310.2666.760.1483.760.2125.380.3478.810.43511.05
T-200.2365.990.3027.670.1744.420.246.10.389.650.4411.185/16std thrd
T-250.3676.780.3358.510.2055.210.2736.930.389.650.4711.94
T-300.2997.590.3659.270.23559.70.3027.670.389.650.512.73/8std thrd15/64std thrd
T-400.338.380.39610.060.2676.780.3338.460.389.650.5313.461/8NPT
T-450.3619.170.42710.850.2987.570.3659.270.389.650.5614.227/16std thrd
T-550.399.910.45611.580.3278.310.39410.010.389.650.5914.993/8std thrd
T-600.41910.640.48512.320.3569.040.42210.720.389.650.631601/4NPT-1/2std thrd1/8NPT
T-650.44711.350.51313.030.3859.780.45111.460.389.650.6616.767/16std thrd
T-700.47111.960.54713.890.40910.390.48512.320.4411.180.6917.539/16std thrd1/2std thrd
T-750.512.70.57614.630.4411.180.51613.110.4411.180.7218.29
T-800.53213.510.60815.440.46811.890.54513.840.4411.180.7519.055/8std thrd1/4NPT
T-900.5513.970.63116.030.48712.370.56814.430.4711.940.7519.053/8NPT9/16std thrd
T-1000.5814.730.66716.940.51813.160.60515.370.512.70.8120.575/8std thrd
T-1050.6115.490.69517.650.54913.940.63416.10.512.70.8421.34
T-1100.6416.260.72718.470.57814.680.66416.870.512.70.8822.353/4std thrd
T-1200.67517.150.75519.180.61315.570.69317.60.512.70.8822.353/8NPT
T-1250.6917.530.78820.020.62815.950.72618.440.5614.220.9423.881/2NPT
T-1300.72518.420.82320.90.6616.840.76119.330.5614.220.7924.643/4std thrd
T-1400.7519.050.84821.540.68717.450.78519.940.5614.22125.17/8std thrd
T-1450.80220.370.91123.140.7418.80.84921.560.63161.0626.921/2NPT
T-1500.81520.70.9323.620.75319.130.86822.050.63161.0927.697/8std thrd
T-1630.86722.020.97124.660.80720.520.9123.110.71518.161.1328.73/4NPT
T-1650.866220.97524.770.80320.40.91223.160.63161.1328.73/4NPT
T-1700.91523.241.0426.420.85521.720.9824.890.6917.531.1629.461-1/16std thrd
T-1800.96424.491.0927.690.90122.891.02726.090.7519.051.2531.75
T-1830.98424.991.05426.770.91323.190.98825.10.46811.891.25331.833/4NPT
T-1850.99525.271.14529.080.93323.71.08327.510.7519.051.3132.3271-1/16std thrd
T-1901.09427.791.21530.861.03126.191.15229.260.7519.051.4135.811 NPT
T-2001.17529.851.28432.611.11328.271.22231.040.63161.4436.58
T-2051.22431.091.35534.421.16129.491.29232.820.7519.051.538.11-5/16std thrd
T-2101.23531.371.3634.541.17329.791.29832.970.8120.571.538.11NPT-1-5/16std thrd
T-2151.28532.641.34634.191.22731.171.28832.720.389.651.4737.34
T-2201.31233.321.46537.211.24931.721.40235.610.8822.351.6341.4
T-2251.23931.471.50738.281.16929.691.43736.50.7519.051.6341.4
T-2401.44736.751.640.641.38435.151.53739.040.8822.351.7544.451-1/4NPT
T-2451.51338.431.640.641.45136.861.53739.040.512.71.7544.451-5/8std thrd
T-2471.51638.511.60140.661.45636.981.54139.140.71618.191.75344.53
T-2501.5639.621.68242.721.49838.051.6241.150.7519.051.8847.751-3/4std thrd1-1/4NPT-1-5/8std thrd
T-2551.6341.41.7544.451.56839.831.68842.880.7519.051.9449.28
T-2651.7544.451.8847.751.68842.881.81846.180.7519.05250.8
T-2701.78145.281.80545.851.72243.741.74644.350.389.65250.81-1/2NPT-1-7/8std thrd
T-2751.7845.211.9549.531.71843.641.88847.96125.42.1354.11-1/2NPT-1-7/8std thrd
T-2801.84446.84250.81.78145.241.93849.23125.42.1354.1
T-2851.948.262.07652.731.83746.662.01351.13125.42.2557.15
T-2951.97550.172.13254.151.91348.592.0752.58125.42.2557.15
T-3002.01551.182.14754.531.95359.612.08552.960.78519.052.3158.68
T-3052.06752.52.24356.972.00550.932.18155.4125.42.4461.982-1/4std thrd
T-3102.12553.982.40661.112.06352.42.34459.54125.42.5364.262NPT
T-3152.13654.252.31258.722.07452.682.2557.15125.42.5665.022-1/4std thrd
T-3202.2356.642.2657.42.16855.072.19855.830.512.72.563.5
T-3252.29858.372.46462.592.23556.772.40160.99125.42.6366.82NPT
T-3302.30758.62.6567.312.24557.022.58865.741.2531.752.7870.612-1/2std thrd
T-3352.39560.832.60266.092.33359.262.5464.521.0326.162.8171.37
T-3402.45762.412.7569.852.39560.832.68868.28125.42.8873.15
T-3452.4862.992.64467.162.41861.422.58265.580.63162.7870.61
T-3502.55564.92.6968.332.49363.322.62866.750.63162.8873.15
T-3552.64167.082.7970.872.57965.512.72869.290.7519.052.9474.682-1/2NPT
T-3602.7670.13.00576.332.68568.22.94774.85125.43.1580.013std thrd
T-3652.84972.362.9875.692.78770.792.91874.120.7519.053.2582.552-1/2NPT
T-3702.97575.573.10378.822.91574.043.04177.240.75219.053.3484.84
T-3752.98275.743.24582.422.91273.963.17580.65125.43.3885.52
T-3803.0978.493.3785.63.0276.713.383.82125.43.588.9
T-3853.2783.063.56290.473.281.283.49288.71.1328.73.6993.733 NPT
T-3903.32584.463.45787.813.24582.423.37785.780.7519.0536.392.23 NPT
T-3953.4788.143.691.443.4186.613.5489.920.7519.053.8898.55
T-4053.6893.473.896.523.6191.693.7394.740.7519.054101.6
T-4103.7996.273.9299.573.7194.233.8497.540.7519.054.12104.653-1/2NPT3-1/2NPT
T-4153.9399.824.07103.383.8698.044101.60.7519.054.38111.25
T-4204.02102.114.14105.163.94100.084.07103.380.7519.054.53115.06
T-4304.27108.464.43112.524.18106.174.34110.240.8822.354.88123.954NPT
T-4354.371114.62117.354.29108.974.54115.32125.451274NPT
T-4904.909124.695.091129.314.831122.715.012127.3125.45.5139.7
