PA螺纹密封盖

产品简介

用于螺纹防护,氯丁橡胶密封垫片能够防止液体泄漏。六角头设计可以用扳手在低扭矩下拧紧,但建议用手拧紧。

产品特色

- 尺寸齐全,覆盖公制螺纹,G螺纹和UNF螺纹
- 轻松去除
- 颜色醒目
Metric
UNF

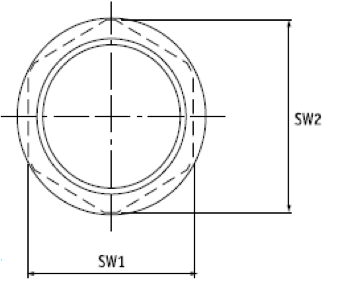

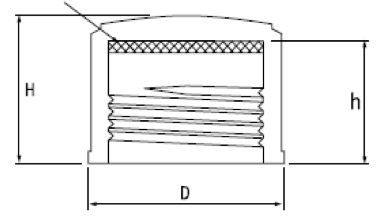

螺纹型号 Dimensions(mm)
螺纹型号 Dimensions(mm)
D
H
h
SW1
SW2
D
H
h
SW1
SW2
M8x1
12.00
13.00
11.00
10.00
11.00
1/4″x28
10.00
13.50
11.50
8.00
8.80
M10x1
14.20
13.00
11.00
12.00
13.20
3/8″x24
13.00
14.50
12.50
11.00
12.10
M12x1
16.50
13.00
11.00
14.00
15.40
716″x24
15.50
14.50
12.50
13.00
14.30
M12x1.5
16.50
15.00
13.00
14.00
15.40
7/16″x20
15.50
15.00
13.00
13.00
14.30
M14x1.5
18.50
15.00
13.00
16.00
17.50
1/2″x20
17.50
15.00
13.00
15.00
16.50
M16x1.5
21.00
15.00
13.00
18.00
19.70
9/16″x18
18.50
15.50
13.50
16.00
17.50
M18x1.5
23.00
15.00
13.00
20.00
21.90
5/8″x18
21.00
15.50
13.50
18.00
19.70
M20x1.5
25.00
15.00
13.00
22.00
24.10
3/4″x16
24.00
16.50
14.50
21.00
23.00
M22x1.5
27.50
15.00
13.00
24.00
26.30
13/16″x16
26.50
16.50
14.50
23.00
25.20
M24x1.5
30.00
15.00
13.00
26.00
28.50
7/8″x18
27.50
15.50
13.50
24.00
26.30
M25x1.5
31.00
15.00
13.00
27.00
29.60
7/8″x14
27.50
17.50
15.50
24.00
26.30
M26x1.5
32.00
15.00
13.00
28.00
30.70
1″x14
31.00
17.50
15.50
27.00
29.60
M28x1.5
34.00
15.00
13.00
30.00
32.90
11/16″x12
34.50
18.50
16.50
30.00
32.90
M30x1.5
36.50
15.00
13.00
32.00
35.10
13/16″x12
36.50
18.50
16.50
32.00
35.10
M30x2
36.50
17.00
15.00
32.00
35.10
15/16″x12
41.00
18.50
16.50
36.00
39.50
M36x1.5
44.50
16.00
14.00
39.00
42.80
13/8″x12
43.00
18.50
16.50
38.00
41.70
M36x2
44.50
18.00
16.00
39.00
42.80
17/16″x12
45.50
18.50
16.50
40.00
43.90
M42x2
51.00
18.50
16.00
45.00
49.40
15/8″x12
51.00
19.00
16.50
45.00
49.40
M45x1.5
54.50
16.50
14.00
48.00
52.60
13/4″x12
54.50
17.00
14.50
48.00
52.60
M45x2
54.50
18.50
16.00
48.00
52.60
17/8″x12
59.50
19.00
16.50
52.00
57.00
M52x2
62.00
18.50
16.00
55.00
60.30
BSP
螺纹型号 Dimensions(mm)
D
H
h
SW1
SW2
1/8″x28
14.00
13.00
11.00
12.00
13.20
1/4″x19
17.50
15.00
13.00
15.00
16.50
3/8″x19
22.00
15.00
13.00
19.00
20.80
1/2″x14
25.00
17.00
15.00
22.00
24.10
5/8″x14
29.00
17.00
15.00
25.00
27.40
3/4″x14
32.00
17.00
15.00
28.00
30.70
7/8″x14
36.00
17.00
15.00
32.00
35.10
1″x11
41.00
19.00
17.00
36.00
39.50
11/4″x11
51.00
19.00
17.00
45.00
49.40
11/2″x11
56.00
19.50
17.00
50.00
54.80
2″x11
71.00
19.50
17.00
63.00
69.10
21/4″x11
80.00
19.50
17.00
70.00
76.80
21/2″x11
90.00
19.50
17.00
80.00
87.70
